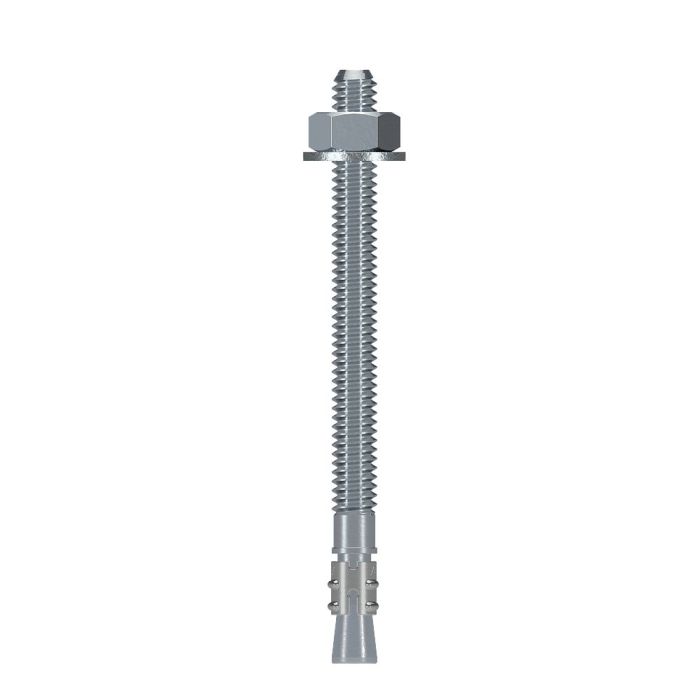

1/2" X 10" Simpson Strong-Bolt 2 Wedge Anchor Zinc Plated Carbon Steel

Product Overview

Key Features: Chamfered top designed to prevent mushrooming during installation. Qualified for static and seismic loading conditions (seismic design categories A through F). Suitable for horizontal, vertical and overhead applications. Qualified for minimum concrete thickness of 3 1/4" and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4". Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes. Tested per ACI355.2 and AC193. Material: Zinc-plated carbon steel. Installation: Drill a hole in the base material, assemble the anchor with nut and washer, and drive it into the hole until the washer and nut are tight against the fixture.

• Material: Zinc-plated carbon steel
• Concrete Thickness: 3 1/4"
• Lightweight Concrete-Over-Steel Deck Thickness:2 1/2" and 3 1/4"
• Seismic Design Categories: A through F
• Applications: Horizontal, Vertical, Overhead
• Standard Sizes: ANSI fractional sizes
• Testing Standards: ACI355.2, AC193
