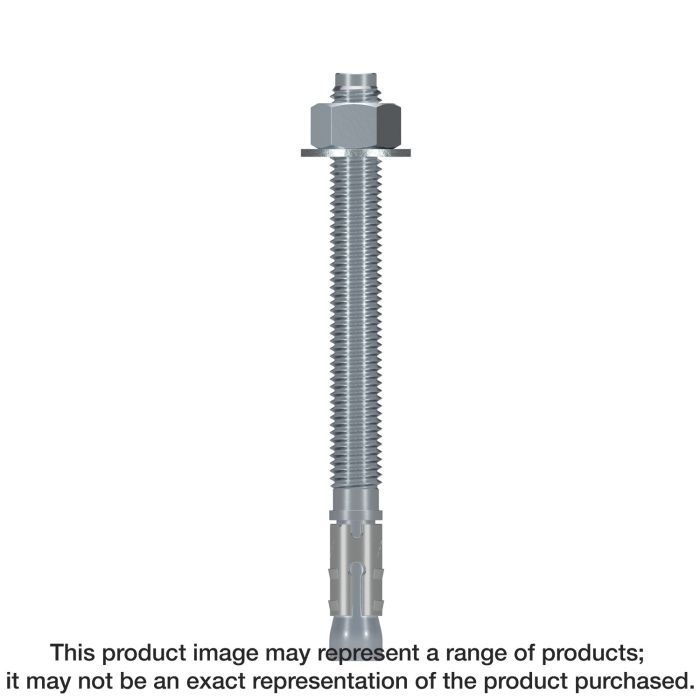

3/4" X 5-1/2" Simpson Strong-Bolt 2 Wedge Anchor Zinc Plated Carbon Steel
Code listed for cracked and uncracked concrete, and masonry applications, the Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary...
In stock
- SKU
- STB2-75512
$3.59
Description
Product Overview
Key Features: Chamfered top designed to prevent mushrooming during installation. Qualified for static and seismic loading conditions (seismic design categories A through F). Suitable for horizontal, vertical and overhead applications. Qualified for minimum concrete thickness of 3 1/4" and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4". Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes. Tested per ACI355.2 and AC193. Material: Zinc-plated carbon steel. Installation: Drill a hole in the base material, assemble the anchor with nut and washer, and drive it into the hole until the washer and nut are tight against the fixture.
- Material: Zinc-plated carbon steel
- Concrete Thickness: 3 1/4"
- Lightweight Concrete-Over-Steel Deck Thickness:2 1/2" and 3 1/4"
- Seismic Design Categories: A through F
- Applications: Horizontal, Vertical, Overhead
- Standard Sizes: ANSI fractional sizes
- Testing Standards: ACI355.2, AC193
