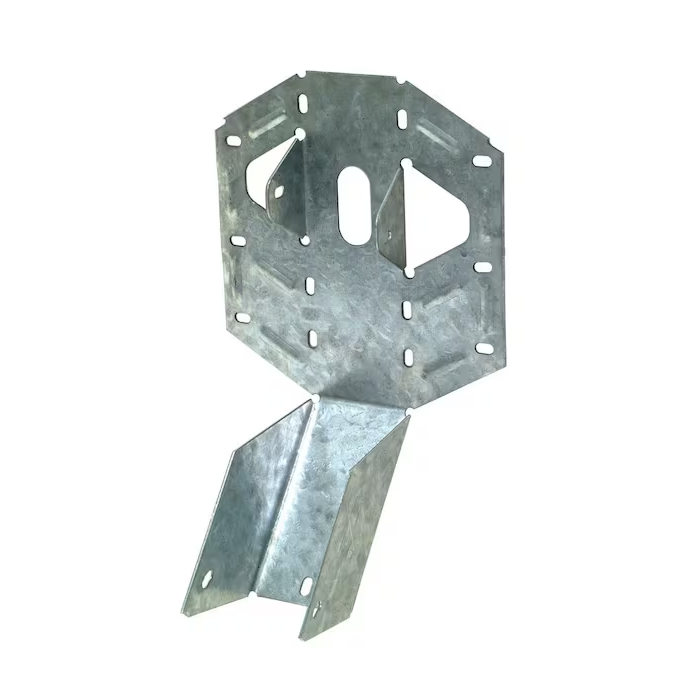

Zmax Lsu26z Lt Sloped Hanger

Product Overview

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LSU series of hangers may be sloped and skewed in the field, offering a versatile solution for attaching joists and rafters.

Key Features

• This product is preferable to similar connectors because of easier installation, higher loads, and lower installed cost
• Attach the sloped joist at both ends so that the horizontal force developed by the slope is fully supported by the supporting members
• Adjustments can be made in the field
• Web stiffeners required for I-joist applications
• Joist width: 1-1/2 in.
• Made from 18-Gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install with 10d common and 10d x 1-1/2 in. nails
