Simpson Strong-Tie SSTB34 SSTB 7/8 in. x 34-7/8 in. Anchor Bolt

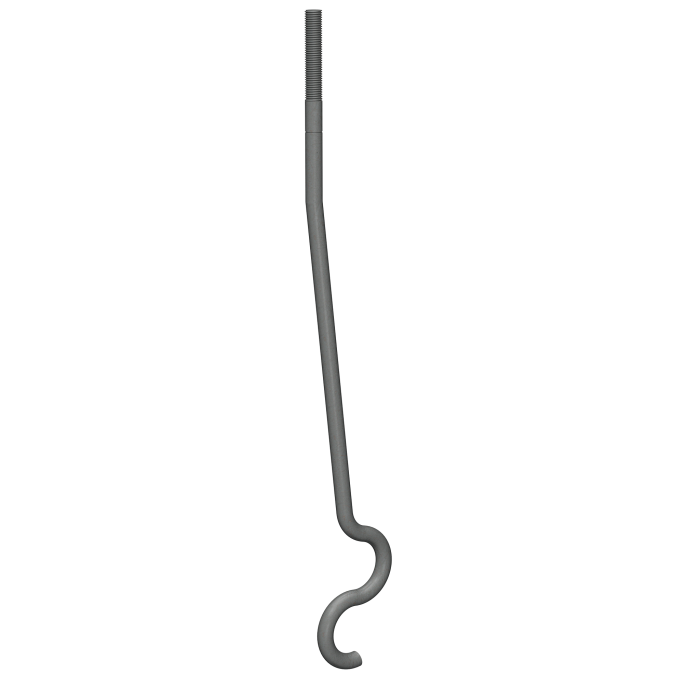

Image of Simpson Strong-Tie SSTB34 SSTB 7/8 in. x 34-7/8 in. Anchor Bolt
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor...

In stock

SKU
SSTB34
$38.99
Description
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.

Features

  • Identification on the bolt head showing embedment angle and model
  • Offset angle reduces side bursting, and provides more concrete cover
  • Rolled thread for higher tensile capacity
  • Stamped embedment line aids installation
  • SSTB is suitable for monolithic and two-pour concrete applications
  • Diameter: 7/8 in.
  • Length: 34-7/8 in.
  • Material: ASTM F-1554, Grade 36
