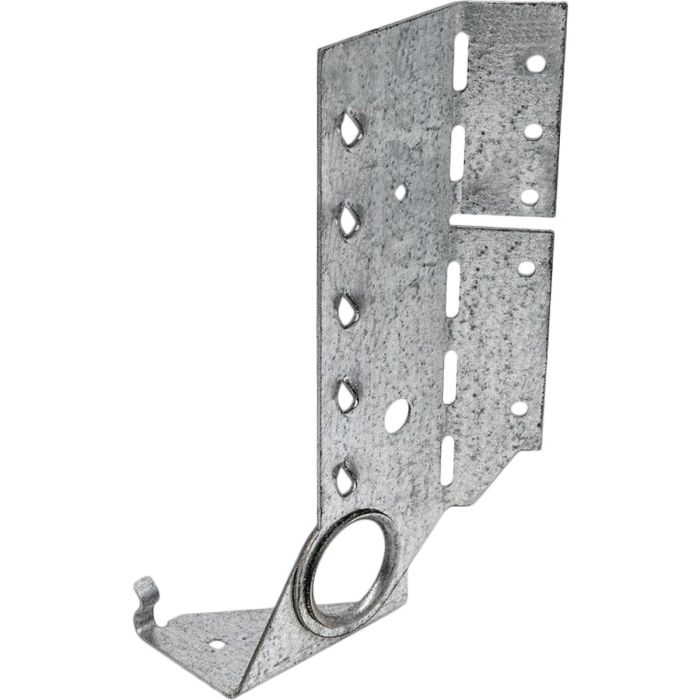

Light Adj Jack Hanger

The innovative LSSJ is ideal for connecting jack rafters to hip members. Featuring a one-sided connection point for ease of installation and a versatile hinged seat, the LSSJ is easily field adjustable to all typical rafter slopes ranging from 0:12 to 12:12. The LSSJs header flange allows for easy skew adjustment, from 0 to 45. It ships pre-bent at 45 so is ready to place for most typical applications.

• Hanger installs from one side with all fastener holes easily accessible
• Can be installed as a retrofit
• Accommodates roof pitches from 0:12 to 12:12
• Swivel seat adjusts easily and provides more support to joist
• Width: 1-9/16 in.
• Skewed Left
