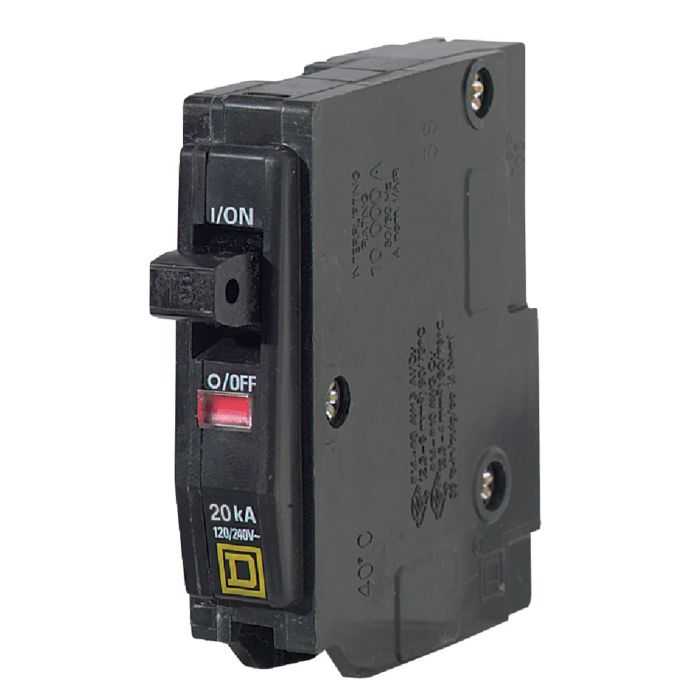

Square D QO 20A Single-Pole Standard Trip Circuit Breaker
$14.79
In stock
SKU
528209
Pickup Today
Ship-to-Store
20A SP CIRCUIT BREAKER
Warehousing information:
Warehouse items arrive at our stores in 3-5 days.
Vendor Warehouse Woodburn, Oregon
136 pcs. in stock
QO circuit breaker for use in QO load centers. Intended for overload and short-circuit protection of electrical systems. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed. Rated for 120 volt/240 volt and 10,000 AIR. Features the exclusive Visi-Trip indicator. When the circuit breaker trips, the handle snaps to a midpoint and a highly visible red indicator easily identifies the tripped breaker.
- Exclusive Visi-Trip indicator
- Intended for overload and short-circuit protection of electrical systems
- ANSI/UL Listed
- 20, 1
| Unit of Measure | Each |
|---|---|
| Item UPC | 00047569837999 |
| Mfg # | QO120CP |
| Amperage | 20 |
| Number of Poles | 1 |
| Interruption Type | Standard Trip |
| Voltage | 120/240 |
| Frame Size | 1-Space |
| Mount Type | Plug-In |
| Wire Size | #14-8 AWG Al/(2) #14-10 AWG Cu |
| Certification | ANSI/UL Listed |
| Width (In.) | 133329 |
