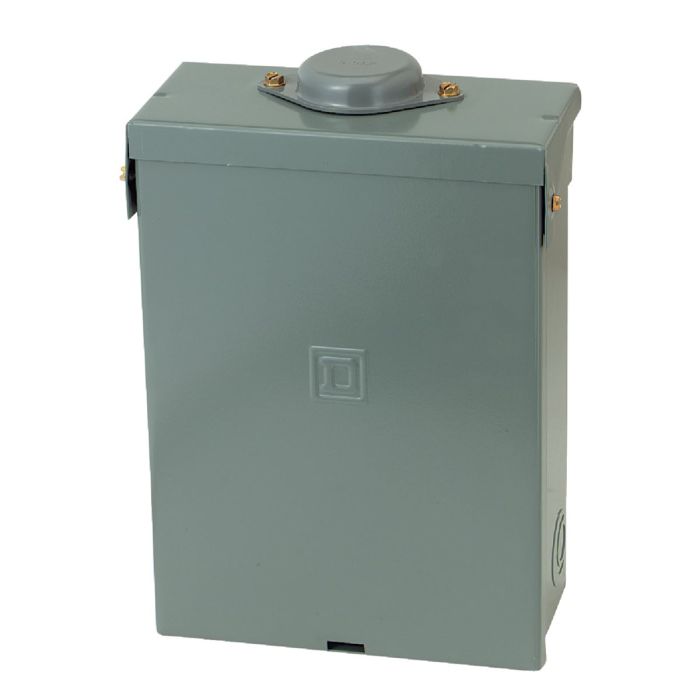

Square D Homeline 100A 6-Space 12-Circuit Raintight Main Lug Load Center
$59.99
In stock
SKU
503789
Pickup Today
Ship-to-Store
100A LOAD CENTER
Warehousing information:
Warehouse items arrive at our stores in 3-5 days.
Vendor Warehouse Woodburn, Oregon
31 pcs. in stock
Homeline, main lugs only. Can be used when spaces for more circuits are needed, as a secondary or add on load center connected to the main disconnect load center. Single-phase, 3-wire. Cover included, ground bar kits must be ordered separately. Accepts only Homeline circuit breakers. Ideal for residential and commercial power distribution. Built with plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Engineered for fast installation and wire savings. For outdoor use.
- Ideal for when spaces for more circuits are needed, as a secondary or add on load center connected to the main disconnect load center
- Single-phase, 3-wire
- Cover included
- Ideal for residential and commercial power distribution
- Built with plated, aluminum bus bar
- Engineered for fast installation and wire savings
- For outdoor use
- UL Listed
| Unit of Measure | Each |
|---|---|
| Item UPC | 00047569071256 |
| Mfg # | HOM612L100RBCP |
| Amperage | 100 |
| Voltage | 120/240 |
| Enclosure Type | Raintight |
| Certification | UL Listed |
| Series | Homeline |
| Mount Type | RB |
| Phase | Single |
| Wire Size | (8) #1 AWG (Copper, Aluminum) |
| Max Number of Circuits | 12 |
| Number Of Spaces | 6 |
