Dormont 5/8 In. OD x 36 In. Coated Stainless Steel Gas Connector, 3/4 In. FIP x 1/2 In. MIP SmartSense (incl. 1/2 In. FIP x 3/4 In. MIP Bushing)
$33.99
In stock
SKU
450390
Warehousing information:
Warehouse items arrive at our stores in 3-5 days.
Vendor Warehouse Woodburn, Oregon
10 pcs. in stock

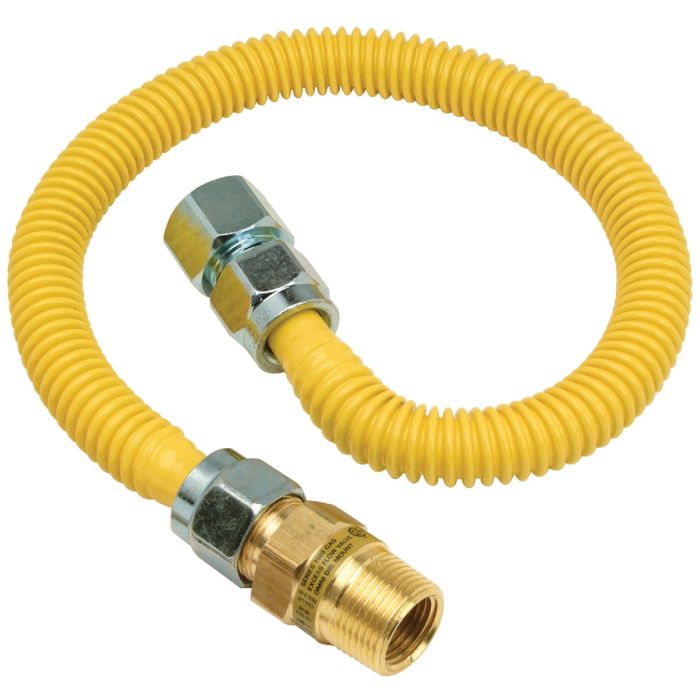

This 5/8 In. OD, 1/2 In. ID, yellow coated corrosion resistant SafetyShield stainless steel gas connector is configured with 3/4 In. FIP x 1/2 In. MIP SmartSense excess flow valve and thermal shut off, additional 3/4 In. MIP thread x 1/2 In. FIP bushing included. The CSA approved gas connector is used on home appliances like gas dryers. SmartSense used with Dormont coated gas connectors gives an industry leading three levels of protection. The 5/8 In. OD flare x 1/2 In. MIP SmartSense EFV and TS is an intricately-designed valve with two primary components, gas flow-limiting plunger and thermal shutoff sensing ring. SmartSense detects and activates in the event of gas line rupture, disconnection or fire. The plunger limits gas flow and the internal thermal ring expands to stop gas flow in temperatures ranging from 350-425 F. SmartSense self resets to standard rate of flow after gas line restoration and pressure equalization.
Features:
- Durable, corrosion resistant stainless steel gas connector
- Yellow-coated, industry recognized color for gas lines
- CSA approved gas connector is used on home appliances like gas dryers
- Equipped with SmartSense excess flow valve and thermal shut off
Mfg # | XL30C-423MV6TS-36B-101 |
---|---|
Outside Diameter | 5/8 In. |
Inside Diameter | 1/2 In. |
Length | 36 In. |
Material | Stainless Steel |
Connector Size | 1/2 In. MIP x 3/4 In. FIP |
